DYNAPAC - Finišeri

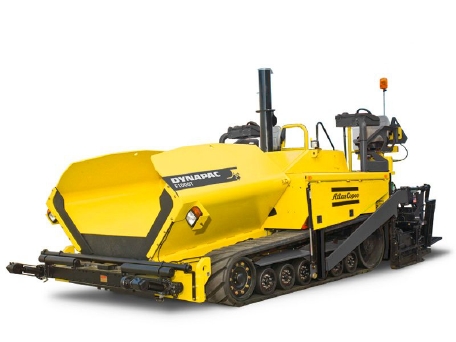

Dynapac F1000T
| Technical Specifications | |
|---|---|
| Traction system | Tracked |
| Min. paving width | 3.05 m |
| Basic paving width | 3.05 m |
| Max. paving width | 7.62 m |
| Masses | |
| Weight | 17235 kg |
| Material hopper | |
| Capacity | 5,9 m³ |
| Dumping height, center | 686 mm |
| Dumping height, outside | 686 mm |
| Hopper width, internal | 3226 mm |
| Traction | |
| Paving speed | 0 - 32 m/min |
| Transport speed | 16 km/h |
| Front ramp angle | 14.75° |
| Conveyor | |
| Conveyor type | Dual bar feeder |
| Conveyor width, dual (mm) | 2 x 685 |
| Conveyor control | Two independent conveyor half's with infinitely variable speed. Both half's can be controlled separately. Conveyor control independent of Augers by Ultrasonic sensors. |
| Auger | |
| Auger diameter | 406 mm |
| Auger control | Dual independent proportional augers |
| Auger height adjustment (mm) | Infinitely variable by 250 mm |
| Engine | |
| Engine brand / model | Cummins QSB 6.7, T3 |
| Power rating | 169 kW (230 hp) at 1800 rpm |
| Capacities | |
| Placement thickness, max. | 305 mm |
| Theoretical placement capacity | 600 t/h |
| Practical placement capacity | 900 m³ |
| Fuel tank capacity | 370 l |
| Paving speed | 0 m/min |
Za više informacija posetite sajt proizvođača

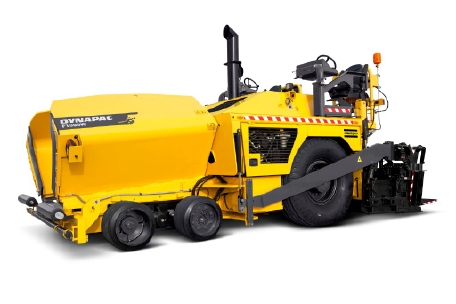

Dynapac F1000W (T4)
_ac0053049_456.jpg)
| Technical Specifications | |
|---|---|
| Traction system | Wheeled |
| Min. paving width | 3.05 m |
| Basic paving width | 3.05 m |
| Max. paving width | 7.93 m |
| Masses | |
| Weight | 15150 kg |
| Material hopper | |
| Capacity | 6,7 m³ (15,0 t) |
| Dumping height, center | 686 mm |
| Dumping height, outside | 686 mm |
| Hopper width, internal | 3226 mm |
| Traction | |
| Paving speed | 0 - 39 m/min |
| Transport speed | 19 km/h |
| Tyre size | 457-R25 |
| Front wheels | 102x406x560 |
| Wheel drive | 2 front and 2 rear wheel |
| Turning radius | 1524 mm |
| Front ramp angle | 14.75° |
| Conveyor | |
| Conveyor type | Dual bar feeder |
| Conveyor width, dual (mm) | 2 x 685 |
| Conveyor control | Two independent conveyor half's with infinitely variable speed. Both half's can be controlled separately. Conveyor control independent of Augers by Ultrasonic sensors. |
| Auger | |
| Auger diameter | 406 mm |
| Auger control | Outboard drive. Two reversible augers with proportional speed control. Left and right augers to be controlled separately by Ultrasonic sensors. |
| Auger height adjustment (mm) | Infinitely variable by 250 mm |
| Engine | |
| Engine brand / model | Cummins QSB 6.7 C220, T4i |
| Power rating | 162 kW (220 hp) at 2000 rpm |
| Capacities | |
| Placement thickness, max. | 305 mm |
| Theoretical placement capacity | 1600 t/h |
| Practical placement capacity | 900 m³ |
| Fuel tank capacity | 370 l |
| Paving speed | 0 m/min |
Za više informacija posetite sajt proizvođača

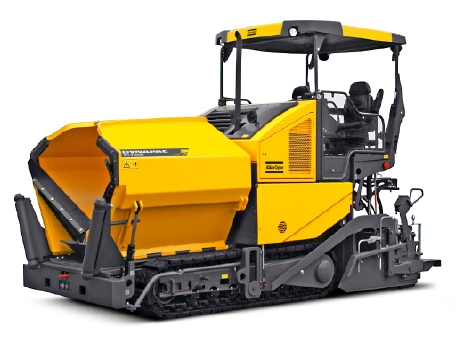

Dynapac F1700C
| Technical Specifications | |
|---|---|
| Traction system | Tracked |
| Min. paving width | 0.7 m |
| Basic paving width | 1.7 m |
| Max. paving width | 4.4 m |
| Masses | |
| Weight | 8800 kg |
| Material hopper | |
| Capacity | 4,7 m³ (10,1 t) |
| Dumping height | 600 mm |
| Hopper width, internal | 3020 mm |
| Traction | |
| Paving speed | 0 - 32 m/min |
| Transport speed | 3.8 km/h |
| Front ramp angle | 17.5 |
| Conveyor | |
| Conveyor type | Dual bar feeder |
| Conveyor width, dual (mm) | 2 x 350 |
| Conveyor control | Automatic with limit switches |
| Auger | |
| Auger diameter | 350 mm |
| Auger control | Automatic with ultrasonic sensors |
| Auger height adjustment (mm) | Infinitely variable by 200 mm |
| Engine | |
| Engine brand / model | Deutz TD2011 L04 |
| Power rating | 52 kW (71 hp) at 2300 rpm |
| Capacities | |
| Placement thickness, max. | 270 mm |
| Theoretical placement capacity | 350 t/h |
| Fuel tank capacity | 98 l |
Za više informacija posetite sajt proizvođača

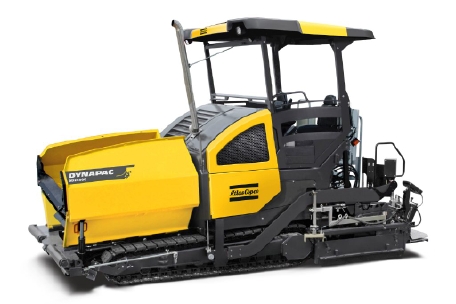

Dynapac SD2500C
| Technical Specifications | |
|---|---|
| Traction system | Tracked |
| Min. paving width | 2 m |
| Basic paving width | 2.55 m |
| Max. paving width | 9 m |
| Masses | |
| Weight | 20000 kg |
| Material hopper | |
| Capacity | 7,0 m³ (15,0 t) |
| Dumping height, center | 575 mm |
| Dumping height, outside | 575 mm |
| Hopper width, internal | 3292 mm |
| Traction | |
| Paving speed | 0 - 28 m/min |
| Transport speed | 4 km/h |
| Front ramp angle | 16° |
| Conveyor | |
| Conveyor type | Dual bar feeder |
| Conveyor width, dual (mm) | 2 x 655 |
| Conveyor control | Automatic with limit switches |
| Auger | |
| Auger diameter | 500 mm |
| Auger control | Automatic with ultrasonic sensors |
| Auger height adjustment (mm) | Hydraulically adjustable by 250 mm |
| Engine | |
| Engine brand / model | Cummins QSB 6.7 C260 |
| Power rating | 194 kW (264 hp) at 2200 rpm |
| Capacities | |
| Placement thickness, max. | 350 mm |
| Theoretical placement capacity | 1100 t/h |
| Fuel tank capacity | 350 l |
| Paving speed | 0 m/min |
Za više informacija posetite sajt proizvođača

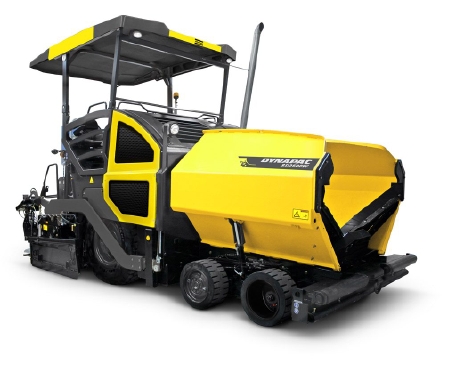

Dynapac SD2500W
| Technical Specifications | |
|---|---|
| Traction system | Wheeled |
| Min. paving width | 2 m |
| Basic paving width | 2.55 m |
| Max. paving width | 7.3 m |
| Masses | |
| Weight | 18000 kg |
| Material hopper | |
| Capacity | 6,0 m³ (12,0 t) |
| Dumping height, center | 587 mm |
| Dumping height, outside | 587 mm |
| Hopper width, internal | 3142 mm |
| Traction | |
| Paving speed | 0 - 30 m/min |
| Transport speed | 20 km/h |
| Tyre size | 445/80-R25 |
| Front wheels | 4x560/300-390 |
| Wheel drive | 2 front and 2 rear wheel |
| Turning radius | 2477 mm |
| Conveyor | |
| Conveyor type | Dual bar feeder |
| Conveyor width, dual (mm) | 2 x 655 |
| Conveyor control | Automatic with limit switches |
| Auger | |
| Auger diameter | 380 mm |
| Auger control | Automatic with ultrasonic sensors |
| Auger height adjustment (mm) | Hydraulically adjustable by 250 mm |
| Engine | |
| Engine brand / model | Cummins QSB 6.7 C173 |
| Power rating | 129 kW (175 hp) at 2200 rpm |
| Capacities | |
| Placement thickness, max. | 300 mm |
| Theoretical placement capacity | 600 t/h |
| Fuel tank capacity | 315 l |
| Paving speed | 0 m/min |
Za više informacija posetite sajt proizvođača

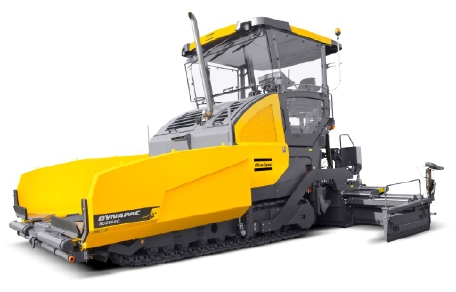

Dynapac SD2550C
| Technical Specifications | |
|---|---|
| Traction system | Tracked |
| Min. paving width | 2 m |
| Basic paving width | 2.55 m |
| Max. paving width | 12 m |
| Masses | |
| Weight | 20000 kg |
| Material hopper | |
| Capacity | 7,0 m³ (15,0 t) |
| Dumping height, center | 530 mm |
| Dumping height, outside | 530 mm |
| Hopper width, internal | 3292 mm |
| Traction | |
| Paving speed | 0 - 28 m/min |
| Transport speed | 4 km/h |
| Front ramp angle | 13.5° |
| Conveyor | |
| Conveyor type | Dual bar feeder |
| Conveyor width, dual (mm) | 2 x 655 |
| Conveyor control | Automatic with limit switches |
| Auger | |
| Auger diameter | 430 mm |
| Auger control | Automatic with ultrasonic sensors |
| Auger height adjustment (mm) | Hydraulically adjustable by 250 mm |
| Engine | |
| Engine brand / model | Cummins QSB 6.7 C260 |
| Power rating | 170 kW (231 hp) at 2200 rpm |
| Capacities | |
| Placement thickness, max. | 350 mm |
| Theoretical placement capacity | 900 t/h |
| Fuel tank capacity | 350 l |
| Paving speed | 0 m/min |
Za više informacija posetite sajt proizvođača
