Pneumatski čekići
AT29: Mechanical poker for the high frequency AME1500 system
| Technical Specifications | |
|---|---|
| Hammer type | Chipping hammer |
| Hammer version | Vibro-reduced |
| Tool retainer | cap |
| Weight | 6.5 kg |
| Length | 450 mm |
| Air consumption | 10 l/s |
| Impact Rate | 2640 blows/min |
| Vibration level 3 axes (ISO 28927-10)* | 2.4 m/s² |
| Sound power level guaranteed, Lw (2000/14/EC)** | 105 dB(A) |
| Sound pressure level (ISO 11203)** Lp, r=1m | 87 dB(A) |
| Shank Size (mm) | Hex 19x50 |
| Shank Size (inch) | Hex 3/4x2 |
Za više informacija posetite sajt proizvođača
TEX 09PS: Pneumatic hammer (Hex 22x82,5) (7/8x3 1/4) with cap retainer
| Technical Specifications | |
|---|---|
| Hammer type | Pick hammer |
| Hammer version | Standard |
| Tool retainer | cap |
| Weight | 10 kg |
| Length | 500 mm |
| Air consumption | 18.5 l/s |
| Impact Rate | 1800 blows/min |
| Vibration level 3 axes (ISO 28927-10)* | 16.1 m/s² |
| Sound power level guaranteed, Lw (2000/14/EC)** | 103 dB(A) |
| Sound pressure level (ISO 11203)** Lp, r=1m | 91 dB(A) |
| Shank Size (mm) | Hex 22x82,5 |
| Shank Size (inch) | Hex 7/8x3 1/4 |
Za više informacija posetite sajt proizvođača

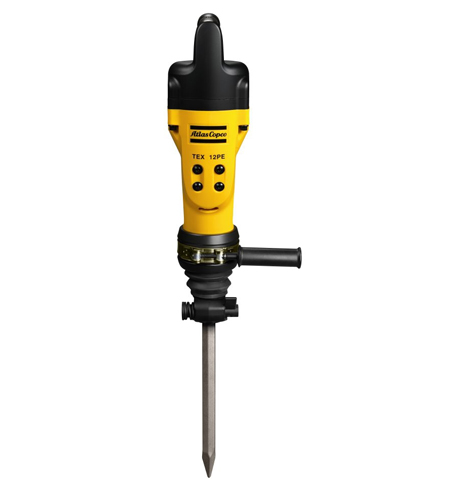

TEX 12PE: Pneumatic hammer (Hex 22x82,5) (7/8x3 1/4) with latch retainer, including front side handle
| Technical Specifications | |
|---|---|
| Hammer type | Pick hammer |
| Hammer version | Vibro-reduced |
| Tool retainer | kick-latch |
| Weight | 12 kg |
| Length | 590 mm |
| Air consumption | 20 l/s |
| Impact Rate | 1620 blows/min |
| Vibration level 3 axes (ISO 28927-10)* | 4 m/s² |
| Sound power level guaranteed, Lw (2000/14/EC)** | 105 dB(A) |
| Sound pressure level (ISO 11203)** Lp, r=1m | 93 dB(A) |
| Shank Size (mm) | Hex 22x82,5 |
| Shank Size (inch) | Hex 7/8x3 1/4 |
Za više informacija posetite sajt proizvođača
TEX 12PSR KL: Pneumatic hammer (Round 25x75) with kick-latch retainer
| Technical Specifications | |
|---|---|
| Hammer type | Pick hammer |
| Hammer version | Standard |
| Tool retainer | kick-latch |
| Weight | 12.5 kg |
| Length | 545 mm |
| Air consumption | 21.3 l/s |
| Impact Rate | 1600 blows/min |
| Vibration level 3 axes (ISO 28927-10)* | 15.4 m/s² |
| Sound power level guaranteed, Lw (2000/14/EC)** | 105 dB(A) |
| Sound pressure level (ISO 11203)** Lp, r=1m | 92 dB(A) |
| Shank Size (mm) | Rd 25x75 |
| Shank Size (inch) | Rd 1x3 |
Za više informacija posetite sajt proizvođača
